Product: Plain woven wire mesh

Plain/twill weave wire mesh (square mesh) has been widely used to form filters and screens. The choice of braiding method should satisfy factors such as the ratio of opening area to wire diameter and application.

Especially in the production of fine meshes with a pore size of 150μ or less, we have gained a high reputation.

How to Measure the Wire Cloth

● Mesh size The numbers of openings in per inch, about 25.4mm, refer to above

● Aperture size, which also refer to opening size,It refers to the measurement of the net open space between parallel adjacent wires. Opening size = 25.4 mm ÷ number of grids-wire diameter Pitch = opening size + wire diameter; or 25.4mm÷number of grids Opening area%=(opening size) 2÷(opening size + wire diameter) 2×100

● Wire diameter, Specify the diameter of the wire before weaving. Under the same mesh number, when the wire diameter is different, the opening size and opening area will change significantly.

Wire Mesh Chart

Check out the chart below for common wire mesh sizes and specifications.

Getting to know Navector Network Industry Co. LTD

High mesh stainless steel screen source manufacturers

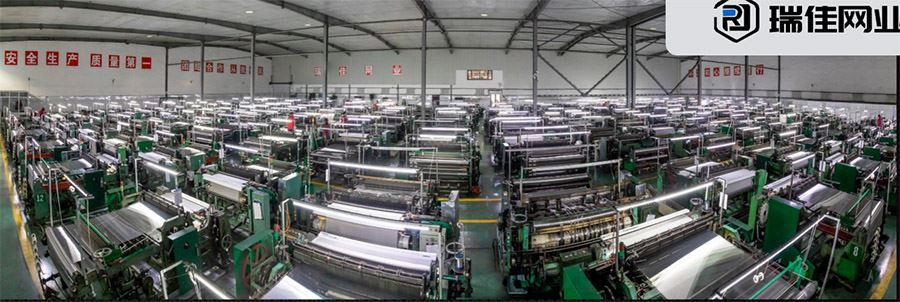

The two-generation leader of NavectorWire Mesh (formerly Anping Nawei Wire Mesh Factory) is one of Anping's tens of millions of wire mesh craftsmen. For nearly 40 years, he has focused on the production of high-mesh stainless steel wire mesh (screen mesh). And technology research and development, from a small workshop of 50 square meters in 1983, a wood loom, to a standardized production workshop of 15,000 square meters now, the company now has a total of JG1300, JG1600, JG2200, JG2500, JG5500 and other net weaving equipment 206 units, with an annual output of more than 800,000 square meters.

The company has R&D and innovation capabilities and has passed the ISO9001:2015 quality system certification. The company has 6 existing technical R&D personnel, who can develop professional-use screens according to customer needs. The products sell well in 100 countries and regions in the world. The long-term cooperative enterprises include Beijing AVIC Merrill Lynch Machinery Equipment Co., Ltd. and Bashan Filter Media under the Ministry of Aeronautics and Astronautics of China, BYD, GKD, DDD in Germany, and DWT in the United States. Talents prosper the enterprise and create the brand. Since its establishment, the company has gradually established a stable, high-quality and technically-level professional team through the continuous implementation of the intellectual introduction project around the establishment of a modern enterprise mechanism. The company now has 138 employees, including 2 MBAs, 8 senior engineers and 108 professional technicians (more than 6 years of work experience), and has established cooperative relationships with famous domestic institutions of higher learning such as Peking University and Nankai University. Get support in science and technology at any time.
