Lab Testing Sieve
All laboratory analysis equipment work with an vibration motor drive. This drive produces a 3D throwing motion that moves the material to be sieved equally over the whole sieving surface.

SEND INQUIRY

Product Details

Navector Lab Test Sieve With 200 / 300 Diameter


Product Description

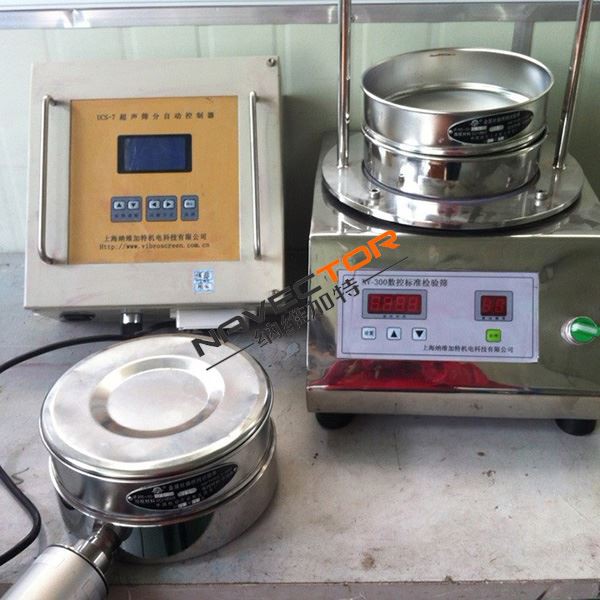

Lab Test Sieve Shaker

All laboratory analysis equipment work with an vibration motor drive. This drive produces a 3D throwing motion that moves the material to be sieved equally over the whole sieving surface.
Standard test sieve is the vibration sieve that has unique operation principle as circular motion. In the screen plane slow motion at the same time, fast whirligig help clean up vertical vibration sieve eye, avoid the block. Equipped with automatic adjustment range from 10 to 60 minutes of time switch, when the end time and actuator automatic stop working.

Lab Testing Sieve


Technical Parameter

Name

Unit

Data

Layers

layer

1-7

Diameter

mm

200

Granularity

mm

0.038-3

Noise

dB

≤50

Input quantity (once)

g

≤200

Amplitude

mm

≤5

Voltage

v

220

Rotation speed

r/min

1420

Power

Kw

0.125

Sieves frame

mm

420*500*720

Wight

kg

43


Packaging & Shipping

Lab Testing Sieve Machine


Navector has been a trusted manufacturer & supplier in advanced screening machines & solutions since 2005 founded in Shanghai,including full technical, mechanical and laboratory support for advanced screening work through a large scale precision separating plant.Navector’s screens and sifters are built to the highest standards of quality and precision which can process grading, classifying, filtering,or dewatering works. We have the ability to fabricate custom design products to meet unique applications with reliable compatibility.
